Octree is one type of collision geometry which can encode uncertainty information in the sensor data. More...

#include <hpp/fcl/octree.h>

Inheritance diagram for fcl::OcTree:

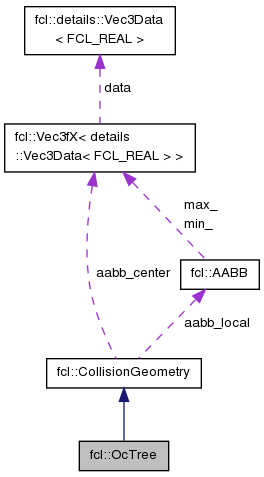

Collaboration diagram for fcl::OcTree:

Public Types
typedef octomap::OcTreeNode	OcTreeNode
	OcTreeNode must implement the following interfaces: 1) childExists(i) 2) getChild(i) 3) hasChildren() More...

Public Member Functions
	OcTree (FCL_REAL resolution)
	construct octree with a given resolution More...

	OcTree (const boost::shared_ptr< const octomap::OcTree > &tree_)
	construct octree from octomap More...

void	computeLocalAABB ()
	compute the AABB for the octree in its local coordinate system More...

AABB	getRootBV () const
	get the bounding volume for the root More...

OcTreeNode *	getRoot () const
	get the root node of the octree More...

bool	isNodeOccupied (const OcTreeNode *node) const
	whether one node is completely occupied More...

bool	isNodeFree (const OcTreeNode *node) const
	whether one node is completely free More...

bool	isNodeUncertain (const OcTreeNode *node) const
	whether one node is uncertain More...

std::vector< boost::array < FCL_REAL, 6 > >	toBoxes () const
	transform the octree into a bunch of boxes; uncertainty information is kept in the boxes. More...

FCL_REAL	getOccupancyThres () const
	the threshold used to decide whether one node is occupied, this is NOT the octree occupied_thresold More...

FCL_REAL	getFreeThres () const
	the threshold used to decide whether one node is occupied, this is NOT the octree free_threshold More...

FCL_REAL	getDefaultOccupancy () const

void	setCellDefaultOccupancy (FCL_REAL d)

void	setOccupancyThres (FCL_REAL d)

void	setFreeThres (FCL_REAL d)

OBJECT_TYPE	getObjectType () const
	return object type, it is an octree More...

NODE_TYPE	getNodeType () const
	return node type, it is an octree More...

Public Member Functions inherited from fcl::CollisionGeometry
	CollisionGeometry ()

virtual	~CollisionGeometry ()

void *	getUserData () const
	get user data in geometry More...

void	setUserData (void *data)
	set user data in geometry More...

bool	isOccupied () const
	whether the object is completely occupied More...

bool	isFree () const
	whether the object is completely free More...

bool	isUncertain () const
	whether the object has some uncertainty More...

virtual Vec3f	computeCOM () const
	compute center of mass More...

virtual Matrix3f	computeMomentofInertia () const
	compute the inertia matrix, related to the origin More...

virtual FCL_REAL	computeVolume () const
	compute the volume More...

virtual Matrix3f	computeMomentofInertiaRelatedToCOM () const
	compute the inertia matrix, related to the com More...

Additional Inherited Members
Public Attributes inherited from fcl::CollisionGeometry
Vec3f	aabb_center
	AABB center in local coordinate. More...

FCL_REAL	aabb_radius
	AABB radius. More...

AABB	aabb_local
	AABB in local coordinate, used for tight AABB when only translation transform. More...

void *	user_data
	pointer to user defined data specific to this object More...

FCL_REAL	cost_density
	collision cost for unit volume More...

FCL_REAL	threshold_occupied
	threshold for occupied ( >= is occupied) More...

FCL_REAL	threshold_free
	threshold for free (<= is free) More...

Detailed Description

Octree is one type of collision geometry which can encode uncertainty information in the sensor data.

Member Typedef Documentation

typedef octomap::OcTreeNode fcl::OcTree::OcTreeNode

OcTreeNode must implement the following interfaces: 1) childExists(i) 2) getChild(i) 3) hasChildren()

Constructor & Destructor Documentation

fcl::OcTree::OcTree ( FCL_REAL resolution )

inline

construct octree with a given resolution

fcl::OcTree::OcTree ( const boost::shared_ptr< const octomap::OcTree > & tree_ )

inline

construct octree from octomap

Member Function Documentation

void fcl::OcTree::computeLocalAABB ( )

inlinevirtual

compute the AABB for the octree in its local coordinate system

Implements fcl::CollisionGeometry.

References fcl::CollisionGeometry::aabb_center, fcl::CollisionGeometry::aabb_local, fcl::CollisionGeometry::aabb_radius, fcl::AABB::center(), getRootBV(), and fcl::AABB::min_.

FCL_REAL fcl::OcTree::getDefaultOccupancy ( ) const

inline

FCL_REAL fcl::OcTree::getFreeThres ( ) const

inline

the threshold used to decide whether one node is occupied, this is NOT the octree free_threshold

NODE_TYPE fcl::OcTree::getNodeType ( ) const

inlinevirtual

return node type, it is an octree

Reimplemented from fcl::CollisionGeometry.

References fcl::GEOM_OCTREE.

OBJECT_TYPE fcl::OcTree::getObjectType ( ) const

inlinevirtual

return object type, it is an octree

Reimplemented from fcl::CollisionGeometry.

References fcl::OT_OCTREE.

FCL_REAL fcl::OcTree::getOccupancyThres ( ) const

inline

the threshold used to decide whether one node is occupied, this is NOT the octree occupied_thresold

OcTreeNode* fcl::OcTree::getRoot ( ) const

inline

get the root node of the octree

AABB fcl::OcTree::getRootBV ( ) const

inline

get the bounding volume for the root

bool fcl::OcTree::isNodeFree ( const OcTreeNode * node ) const

inline

whether one node is completely free

Referenced by isNodeUncertain().

bool fcl::OcTree::isNodeOccupied ( const OcTreeNode * node ) const

inline

whether one node is completely occupied

Referenced by isNodeUncertain(), and toBoxes().

bool fcl::OcTree::isNodeUncertain ( const OcTreeNode * node ) const

inline

whether one node is uncertain

References isNodeFree(), and isNodeOccupied().

void fcl::OcTree::setCellDefaultOccupancy ( FCL_REAL d )

inline

void fcl::OcTree::setFreeThres ( FCL_REAL d )

inline

void fcl::OcTree::setOccupancyThres ( FCL_REAL d )

inline

std::vector<boost::array<FCL_REAL, 6> > fcl::OcTree::toBoxes ( ) const

inline

transform the octree into a bunch of boxes; uncertainty information is kept in the boxes.

However, we only keep the occupied boxes (i.e., the boxes whose occupied probability is higher enough).

References isNodeOccupied().
