#include <hpp/core/continuous-validation.hh>

Inheritance diagram for hpp::core::ContinuousValidation:

[legend]

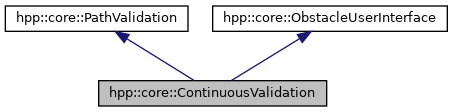

Collaboration diagram for hpp::core::ContinuousValidation:

Classes
class	AddObstacle

class	Initialize

Public Member Functions
virtual bool	validate (const PathPtr_t &path, bool reverse, PathPtr_t &validPart, PathValidationReportPtr_t &report)

virtual void	addObstacle (const CollisionObjectConstPtr_t &object)

virtual void	removeObstacleFromJoint (const JointPtr_t &joint, const CollisionObjectConstPtr_t &obstacle)

void	filterCollisionPairs (const RelativeMotion::matrix_type &relMotion)

virtual void	setSecurityMargins (const matrix_t &securityMatrix)

virtual void	setSecurityMarginBetweenBodies (const std::string &body_a, const std::string &body_b, const value_type &margin)

void	addIntervalValidation (const IntervalValidationPtr_t &intervalValidation)

value_type	tolerance () const
	Get tolerance value. More...

value_type	breakDistance () const

void	breakDistance (value_type distance)

DevicePtr_t	robot () const

void	initialize ()

virtual	~ContinuousValidation ()

Delegate
template<class Delegate >
void	add (const Delegate &delegate)

template<class Delegate >
void	reset ()

Public Member Functions inherited from hpp::core::PathValidation
virtual bool	validate (ConfigurationIn_t q, ValidationReportPtr_t &report)

virtual	~PathValidation ()

Public Member Functions inherited from hpp::core::ObstacleUserInterface
virtual	~ObstacleUserInterface ()=default

Protected Types
typedef continuousValidation::IntervalValidations_t	IntervalValidations_t

Protected Member Functions
	ContinuousValidation (const DevicePtr_t &robot, const value_type &tolerance)

virtual bool	validateConfiguration (IntervalValidations_t &intervalValidations, const Configuration_t &config, const value_type &t, interval_t &interval, PathValidationReportPtr_t &report)

bool	validateIntervals (IntervalValidations_t &validations, const value_type &t, interval_t &interval, PathValidationReportPtr_t &pathReport, typename IntervalValidations_t::iterator &smallestInterval, pinocchio::DeviceData &data)

void	init (ContinuousValidationWkPtr_t weak)
	Store weak pointer to itself. More...

Protected Member Functions inherited from hpp::core::PathValidation
	PathValidation ()

Static Protected Member Functions
static void	setPath (IntervalValidations_t &intervalValidations, const PathPtr_t &path, bool reverse)

Protected Attributes
DevicePtr_t	robot_

value_type	tolerance_

value_type	breakDistance_

IntervalValidations_t	intervalValidations_
	All BodyPairValidation to validate. More...

IntervalValidations_t	disabledBodyPairCollisions_
	BodyPairCollision for which collision is disabled. More...

pinocchio::Pool< IntervalValidations_t >	bodyPairCollisionPool_

value_type	stepSize_

Detailed Description

Continuous validation of a path

This class valides a path for various criteria. The default validation criterion is the absence of collisions between bodies of a robot and the environment.

Validation of PathVector instances is performed path by path.

A path is valid if and only if each interval validation element is valid along the whole interval of definition (class continuousValidation::IntervalValidation).

In order to validate other criteria, users can add their own derivation of class continuousValidation::IntervalValidation using method addIntervalValidation. They can also make use of two types of delegates:

Initialize and user defined derived classes. Instances of these classes may be added to the list of initializers by calling method <ContinuousValidation::Initialize> add . Upon calling method initialize, methods doExecute of these instances are called sucessively.
AddObstacle and user defined derived classes. Instances of these classes may be added to the list of obstacle adders by calling method <ContinuousValidation::AddObstacle> add . Upon calling method addObstacle, method doExecute of these instances are called sucessively.

Base class ContinuousValidation::Initialize initializes collision pairs between bodies of the robot.

Validation of a collision pair is based on the computation of an upper-bound of the relative velocity of objects of one joint (or of the environment) in the reference frame of the other joint. This is implemented in continuousValidation::BodyPairCollision and continuousValidation::SolidSolidCollision.

See this document for details on the continuous collision checking.

See this document for details on the architecture of the code.

Member Typedef Documentation

◆ IntervalValidations_t

typedef continuousValidation::IntervalValidations_t hpp::core::ContinuousValidation::IntervalValidations_t

protected

Constructor & Destructor Documentation

◆ ~ContinuousValidation()

virtual hpp::core::ContinuousValidation::~ContinuousValidation ( )

virtual

◆ ContinuousValidation()

hpp::core::ContinuousValidation::ContinuousValidation	(	const DevicePtr_t &	robot,
		const value_type &	tolerance
	)

protected

Constructor

Parameters

robot	the robot for which validation is performed,
tolerance	maximal penetration allowed.

Member Function Documentation

◆ add()

template<class Delegate >

void hpp::core::ContinuousValidation::add ( const Delegate & delegate )

Add a delegate

Template Parameters

Delegate type of delegate.

Parameters

instance of delegate class.

Delegates are used to enable users to specialize some actions of the class without deriving the class. This class supports two types of delegates:

Initialize: method doExecute of instances of this class and of user defined derived classes are called successively upon call of method , AddObstacle: method ContinuousValidation::AddObstacle::doExecute doExecute of instances of this class and of user defined derived classes are called successively upon call of method ,

◆ addIntervalValidation()

void hpp::core::ContinuousValidation::addIntervalValidation ( const IntervalValidationPtr_t & intervalValidation )

Add interval validation instance

◆ addObstacle()

virtual void hpp::core::ContinuousValidation::addObstacle ( const CollisionObjectConstPtr_t & object )

virtual

Iteratively call method doExecute of delegate classes AddObstacle

Parameters

object new obstacle.

See also: ContinuousValidation::add, ContinuousValidation::AddObstacle.

Implements hpp::core::ObstacleUserInterface.

◆ breakDistance() [1/2]

value_type hpp::core::ContinuousValidation::breakDistance ( ) const

inline

Get the break distance passed to collision checking.

See also: coal::CollisionRequest::break_distance

◆ breakDistance() [2/2]

void hpp::core::ContinuousValidation::breakDistance ( value_type distance )

Set the break distance passed to collision checking.

See also: value_type breakDistance() const

◆ filterCollisionPairs()

void hpp::core::ContinuousValidation::filterCollisionPairs ( const RelativeMotion::matrix_type & relMotion )

virtual

Filter collision pairs.

Remove pairs of object that cannot be in collision. This effectively disables collision detection between objects that have no possible relative motion due to the constraints.

Parameters

relMotion square symmetric matrix of RelativeMotionType of size numberDof x numberDof

Implements hpp::core::ObstacleUserInterface.

◆ init()

void hpp::core::ContinuousValidation::init ( ContinuousValidationWkPtr_t weak )

protected

Store weak pointer to itself.

◆ initialize()

void hpp::core::ContinuousValidation::initialize ( )

Iteratively call method doExecute of delegate classes Initialize

See also: ContinuousValidation::add, ContinuousValidation::Initialize.

◆ removeObstacleFromJoint()

virtual void hpp::core::ContinuousValidation::removeObstacleFromJoint	(	const JointPtr_t &	joint,
		const CollisionObjectConstPtr_t &	obstacle
	)

virtual

Remove a collision pair between a joint and an obstacle

Parameters

joint	the joint that holds the inner objects,
obstacle	the obstacle to remove.

Note: collision configuration validation needs to know about obstacles. This virtual method does nothing for configuration validation methods that do not care about obstacles.

Implements hpp::core::ObstacleUserInterface.

◆ reset()

template<class Delegate >

void hpp::core::ContinuousValidation::reset

Reset delegates of a type

Template Parameters

delegate type of delegate

◆ robot()

DevicePtr_t hpp::core::ContinuousValidation::robot ( ) const

inline

◆ setPath()

static void hpp::core::ContinuousValidation::setPath	(	IntervalValidations_t &	intervalValidations,
		const PathPtr_t &	path,
		bool	reverse
	)

staticprotected

◆ setSecurityMarginBetweenBodies()

virtual void hpp::core::ContinuousValidation::setSecurityMarginBetweenBodies	(	const std::string &	body_a,
		const std::string &	body_b,
		const value_type &	margin
	)

virtual

Set security margin for collision pair between the two bodies.

See also: coal::CollisionRequest::security_margin.

Implements hpp::core::ObstacleUserInterface.

◆ setSecurityMargins()

virtual void hpp::core::ContinuousValidation::setSecurityMargins ( const matrix_t & securityMatrix )

virtual

Set different security margins for collision pairs

This function works joint-wise. If you need a finer control, use setSecurityMarginBetweenBodies

This method enables users to choose different security margins for each pair of robot joint or each pair robot joint - obstacle.

See also: coal::CollisionRequest::security_margin.

Implements hpp::core::ObstacleUserInterface.

◆ tolerance()

value_type hpp::core::ContinuousValidation::tolerance ( ) const

inline

Get tolerance value.

◆ validate()

virtual bool hpp::core::ContinuousValidation::validate	(	const PathPtr_t &	path,
		bool	reverse,
		PathPtr_t &	validPart,
		PathValidationReportPtr_t &	report
	)

virtual

Compute the largest valid interval starting from the path beginning

Parameters

path	the path to check for validity,
reverse	if true check from the end,

Return values

validPart	the extracted valid part of the path, pointer to path if path is valid.
report	information about the validation process. A report is allocated if the path is not valid.

Returns: true if the whole path is valid.

Implements hpp::core::PathValidation.

◆ validateConfiguration()

virtual bool hpp::core::ContinuousValidation::validateConfiguration	(	IntervalValidations_t &	intervalValidations,
		const Configuration_t &	config,
		const value_type &	t,
		interval_t &	interval,
		PathValidationReportPtr_t &	report
	)

protectedvirtual

Validate interval centered on a path parameter

Parameters

intervalValidations	collision to consider
config	Configuration at abscissa t on the path.
t	parameter value in the path interval of definition

Return values

interval interval over which the path is collision-free, not necessarily included in definition interval

Returns: true if the body pair is collision free for this parameter value, false if the body pair is in collision.

Note: object should be in the positions defined by the configuration of parameter t on the path.

◆ validateIntervals()

bool hpp::core::ContinuousValidation::validateIntervals	(	IntervalValidations_t &	validations,
		const value_type &	t,
		interval_t &	interval,
		PathValidationReportPtr_t &	pathReport,
		typename IntervalValidations_t::iterator &	smallestInterval,
		pinocchio::DeviceData &	data
	)

inlineprotected

Validate a set of intervals for a given parameter along a path

Template Parameters

IntervalValidation	type of container of validation elements (for instance validation for collision between a pair of bodies),
ValidationReportTypePtr_t	type of validation report produced in case non validation. Should derive from ValidationReport.

Parameters

objects	able to validate an interval for collision,
t	center of the interval to be validated,

Return values

interval	interval validated for all objects,
smallestInterval	iterator to the validation element that returned the smallest interval.

Member Data Documentation

◆ bodyPairCollisionPool_

pinocchio::Pool<IntervalValidations_t> hpp::core::ContinuousValidation::bodyPairCollisionPool_

protected

◆ breakDistance_

value_type hpp::core::ContinuousValidation::breakDistance_

protected

◆ disabledBodyPairCollisions_

IntervalValidations_t hpp::core::ContinuousValidation::disabledBodyPairCollisions_

protected

BodyPairCollision for which collision is disabled.

◆ intervalValidations_

IntervalValidations_t hpp::core::ContinuousValidation::intervalValidations_

protected

All BodyPairValidation to validate.

◆ robot_

DevicePtr_t hpp::core::ContinuousValidation::robot_

protected

◆ stepSize_

value_type hpp::core::ContinuousValidation::stepSize_

protected

◆ tolerance_

value_type hpp::core::ContinuousValidation::tolerance_

protected

The documentation for this class was generated from the following file:

include/hpp/core/continuous-validation.hh
