hpp::manipulation::graph::GraphComponent Class Reference

Define common methods of the graph components. More...

#include <hpp/manipulation/graph/graph-component.hh>

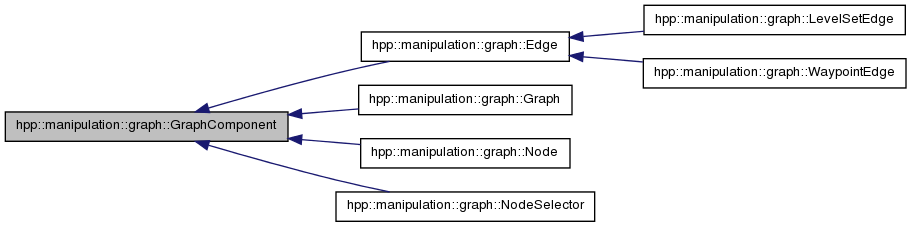

Inheritance diagram for hpp::manipulation::graph::GraphComponent:

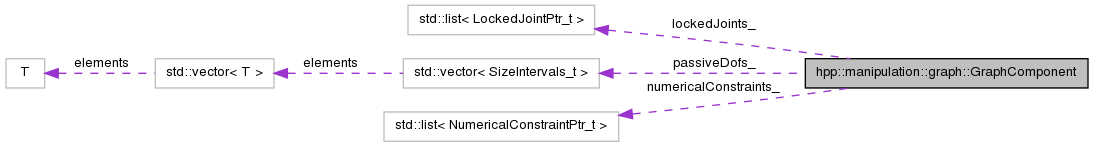

Collaboration diagram for hpp::manipulation::graph::GraphComponent:

List of all members.

Public Member Functions

const std::string & name () const
 Get the component name.
void name (const std::string &name)
 Set the component name.
int id () const
 Return the component id.
virtual void addNumericalConstraint (const NumericalConstraintPtr_t &numConstraint, const SizeIntervals_t &passiveDofs=SizeIntervals_t())
 Add core::NumericalConstraint to the component.
virtual void addNumericalConstraint (const DifferentiableFunctionPtr_t &function, const ComparisonTypePtr_t &ineq) HPP_MANIPULATION_DEPRECATED
 Add core::DifferentiableFunction to the component.
virtual void addLockedJointConstraint (const LockedJointPtr_t &constraint)
 Add core::LockedJoint constraint to the component.
bool insertNumericalConstraints (ConfigProjectorPtr_t &proj) const
 Insert the numerical constraints in a ConfigProjector.
bool insertLockedJoints (ConfigProjectorPtr_t &cs) const
 Insert the LockedJoint constraints in a ConstraintSet.
const NumericalConstraints_tnumericalConstraints () const
 Get a reference to the NumericalConstraints_t.
const LockedJoints_tlockedJoints () const
 Get a reference to the LockedJoints_t.
void parentGraph (const GraphWkPtr_t &parent)
 Set the parent graph.
virtual std::ostream & dotPrint (std::ostream &os, dot::DrawingAttributes da=dot::DrawingAttributes()) const
 Print the component in DOT language.

Static Public Member Functions

static GraphComponentWkPtr_t get (int id)
 Get the component by its ID.

Protected Member Functions

void init (const GraphComponentWkPtr_t &weak)
 Initialize the component.
 GraphComponent ()
virtual std::ostream & print (std::ostream &os) const
 Print the object in a stream.
virtual void populateTooltip (dot::Tooltip &tp) const
 Populate DrawingAttributes tooltip.

Protected Attributes

NumericalConstraints_t numericalConstraints_
 Stores the numerical constraints.
std::vector< SizeIntervals_tpassiveDofs_
 Stores the passive dofs for each numerical constraints.
LockedJoints_t lockedJoints_
 List of LockedJoint constraints.
GraphWkPtr_t graph_
 A weak pointer to the parent graph.

Friends

std::ostream & operator<< (std::ostream &, const GraphComponent &)

Detailed Description

Define common methods of the graph components.


Constructor & Destructor Documentation


Member Function Documentation

Add core::LockedJoint constraint to the component.

virtual void hpp::manipulation::graph::GraphComponent::addNumericalConstraint ( const NumericalConstraintPtr_t numConstraint,
const SizeIntervals_t passiveDofs = SizeIntervals_t()
) [virtual]

Add core::NumericalConstraint to the component.

Parameters:
passiveDofssee ConfigProjector::addNumericalConstraint

Reimplemented in hpp::manipulation::graph::NodeSelector.

static GraphComponentWkPtr_t hpp::manipulation::graph::GraphComponent::get ( int  id) [static]

Get the component by its ID.

The validity of the GraphComponent is not checked.

Return the component id.

void hpp::manipulation::graph::GraphComponent::init ( const GraphComponentWkPtr_t &  weak) [protected]

Initialize the component.

Insert the LockedJoint constraints in a ConstraintSet.

Returns:
true is at least one LockedJointPtr_t was inserted.

Insert the numerical constraints in a ConfigProjector.

Returns:
true is at least one NumericalConstraintPtr_t was inserted.

Get a reference to the LockedJoints_t.

const std::string& hpp::manipulation::graph::GraphComponent::name ( ) const

Get the component name.

void hpp::manipulation::graph::GraphComponent::name ( const std::string &  name)

Set the component name.

Get a reference to the NumericalConstraints_t.

void hpp::manipulation::graph::GraphComponent::parentGraph ( const GraphWkPtr_t &  parent)

Set the parent graph.

virtual void hpp::manipulation::graph::GraphComponent::populateTooltip ( dot::Tooltip tp) const [protected, virtual]

Populate DrawingAttributes tooltip.

Reimplemented in hpp::manipulation::graph::LevelSetEdge, and hpp::manipulation::graph::Node.


Friends And Related Function Documentation

std::ostream& operator<< ( std::ostream &  ,
const GraphComponent
) [friend]

Member Data Documentation

A weak pointer to the parent graph.

List of LockedJoint constraints.

Stores the passive dofs for each numerical constraints.
